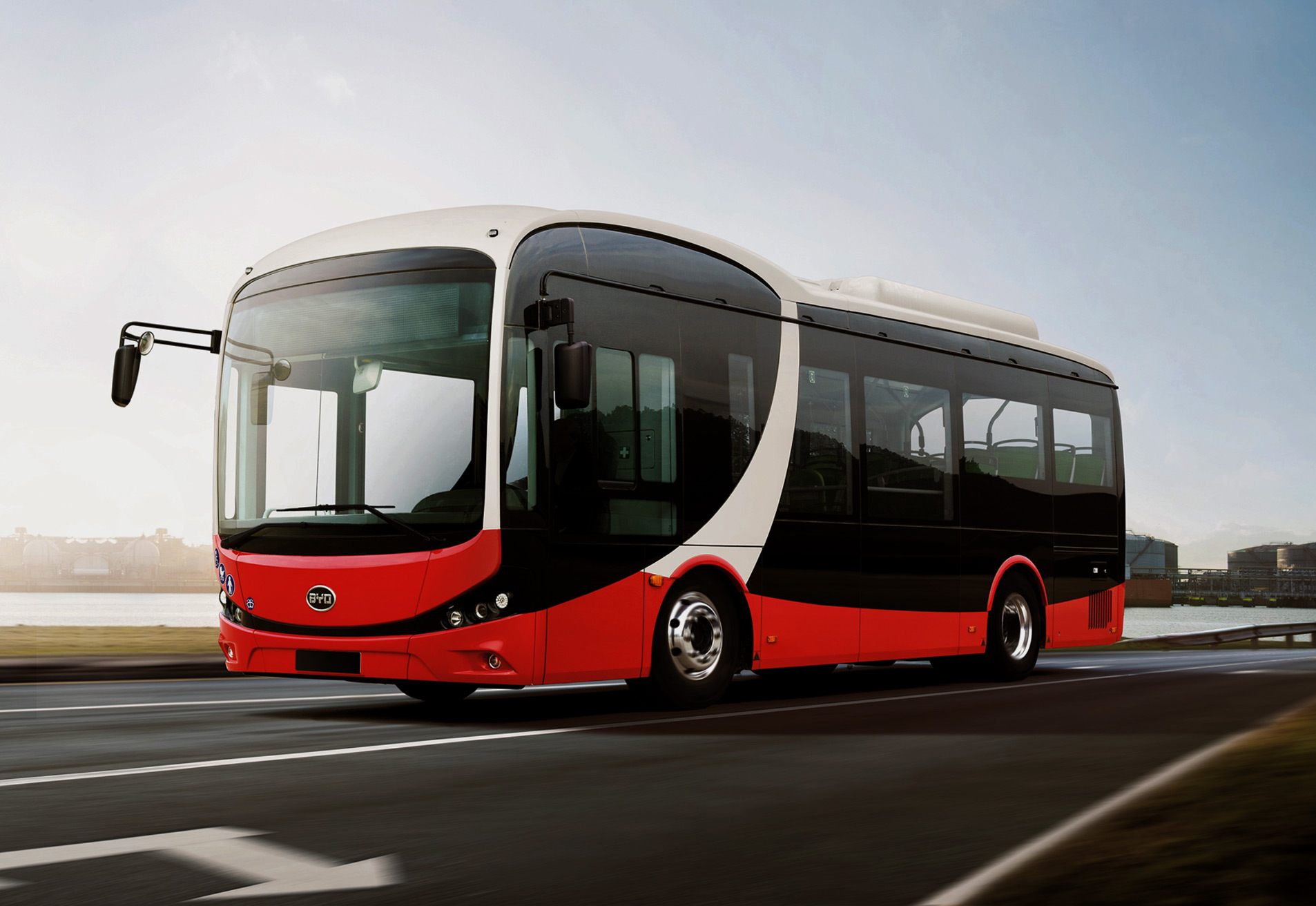

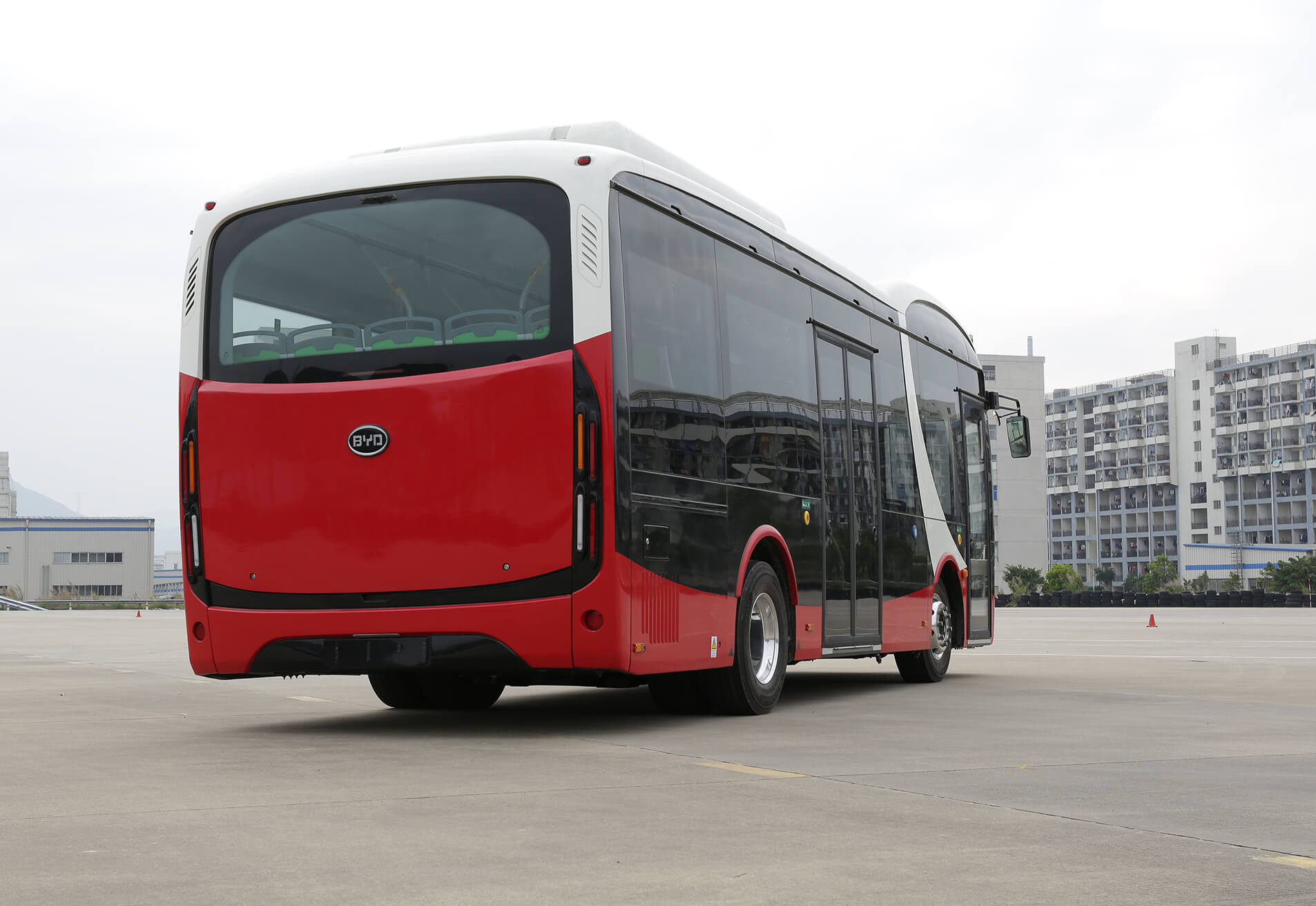

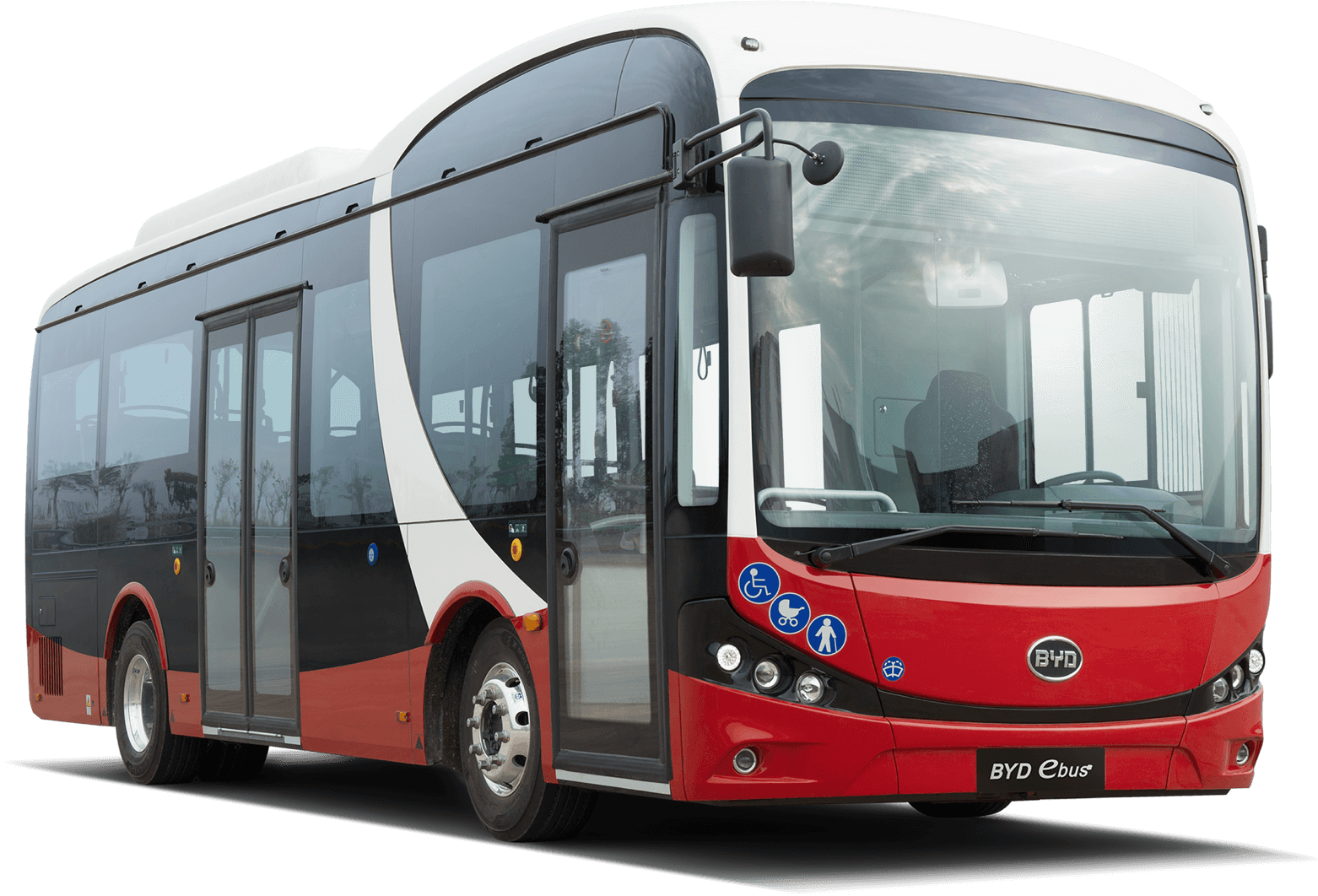

Bus 8.7m Midibus.
With a length of 8.7m and 22 passenger seats, this model is the smallest of our ebus family. Thanks to its length the bus is easily manoeuvrable in narrow city streets.

Technical specifications.

Dimensions

L / W / H8,750 mm / 2,455 mm / 3,300 mm
Wheelbase4,350 mm
Turning circle17 m
Floor height370 mm
Boarding height325/340 mm
Approach/Departure angle8/8 º
Tyres285/70 R19.5
Interior headroom2,390 mm
Clear door width730/1,200 mm
Gross Vehicle Weight (G.V.W.)14,500 kg
L/W/H 8,750/2,455/3,400 mm
Wheelbase 4,350 mm
Turning circle 16 m
Floor height 370 mm
Boarding height 325/340 mm
Approach/Departure angle 8/8 º
Tyres 285/70 R19.5
Interior headroom 2,390 mm
Clear door width 739/1,200 mm
Gross Vehicle Weight (G.V.W.) 14,500 kg

Powertrain

Max. motor power90 x 2 kW
Max. climb gradient17%
Max. motor power 90kW x 2
Max. climb gradient 15%

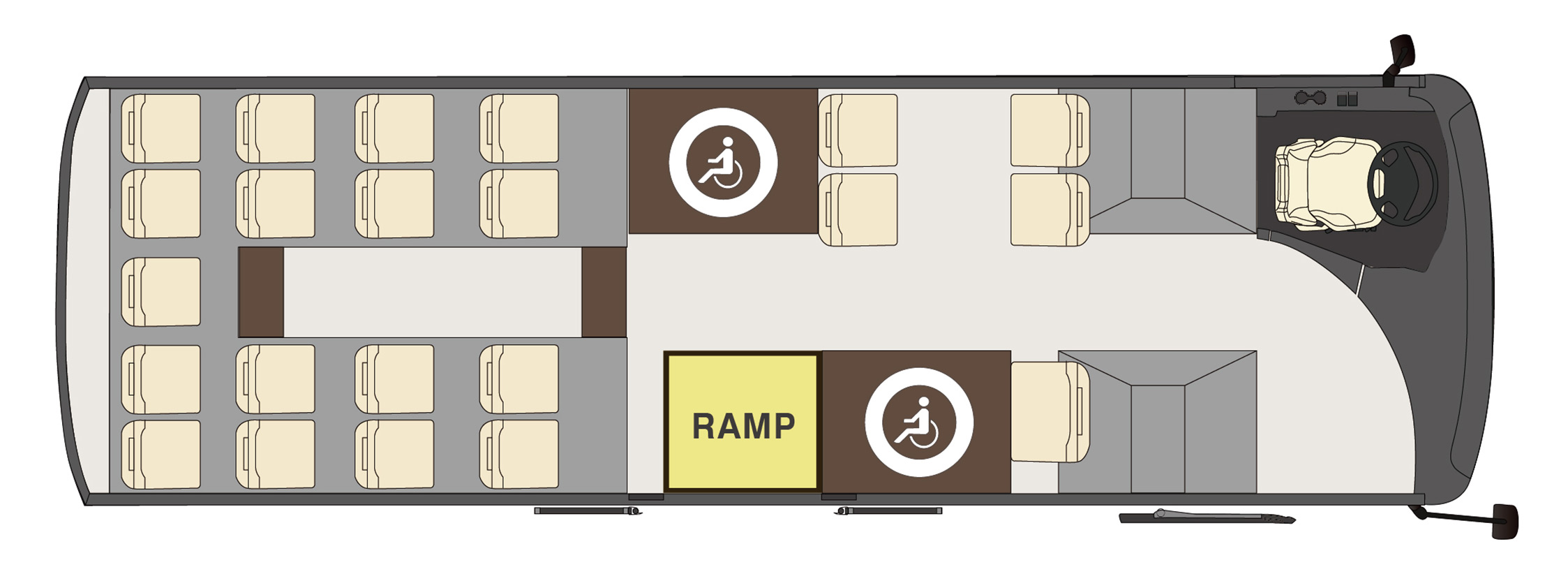

Layout

Download our leaflet
and brochure.
